Gléas Teannas BZJ01
Bileog Paraiméadar Teicniúil
Trastomhas sceal (mm): 0240
Trastomhas rópa (mm): 08
Samhail rialtóir coimhdeach XS3 XS3A XS3B
Trastomhas sceal (mm): 0240
Trastomhas rópa (mm): 08
Samhail rialtóir coimhdeach XS3 XS3A XS3B

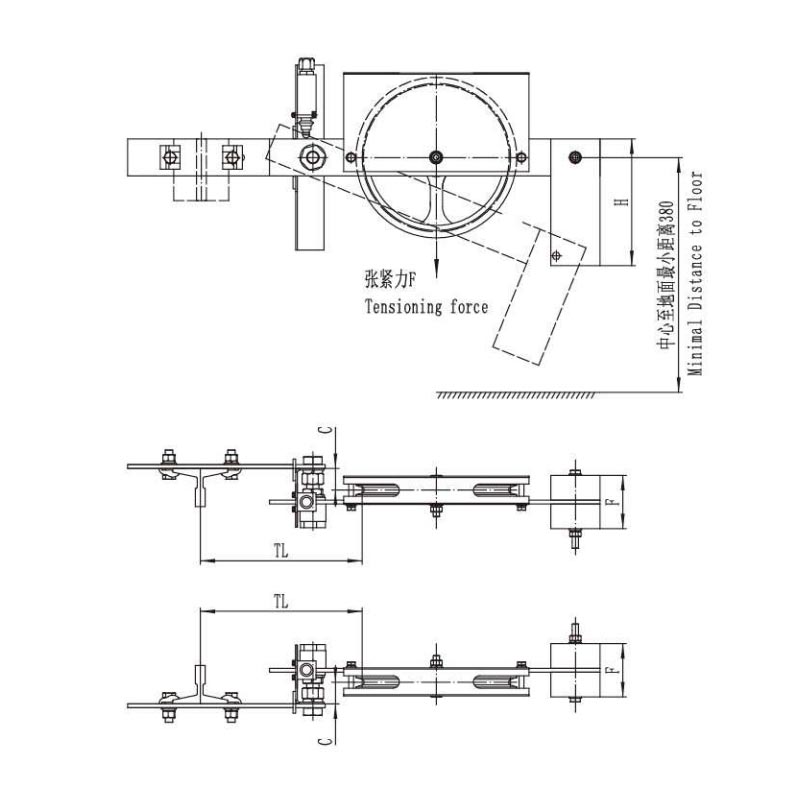

Gléas Teannas BZJ01
| NÍL. | E(kg) Frithmheáchan |
Ábhar |
C(m) | FXH(mm) | (m) Taisteal carr |
F(N) Fórsa teannais |
TL(mm) Cineál le haghaidh iarnróid treorach |
| L01 | 10 | Cruach pláta |
20-48 | 86X205 | H<60 | 250 | T75 183.5-250.5,283.5-350.5 T78 182-252,282-352 T89 184.5-256.5,277.5-356.5 |
| L02 | 15 | 86×231 | 60|
350
|
| |||
| L03 | 20 | 20-44 | 86×272 | 80|
450
|
| ||
| L04 | 10 | 20-48 | 86×205 | E660 | 250 | T75 243.5-300.5 T78 242-302 T89 244.5-299.5 |
|
| L05 | 15 | 86×231 | 60|
350
|
| |||
| L06 | 20 | 20-44 | 86×272 | 80|
450
|
| ||
| L07 | 10 | 20-48 | 86×205 | B≤60 | 250 | T114 200-290 T127 210-283.5 |
|
| L08 | 15 | 86×231 | 60|
350
|
| |||
| L09 | 20 | 20-44 | 86×272 | 80|
450
|
| ||
| L10 | 17 |
Méine tiomantas |
20-48 | 100×266 | 60|
400
|
T75 183.5-250.5,283.5-350.5 |
T78 182-252,282-352 T89 184.5-256.5,277.5-356.5 |
| L11 | 20 | 20-44 | 80|
450
|
| |||
| L12 | 17 | 20-48 | 60<1≤80 | 400 | T75 243.5-300.5 T78 242-302 T89 244.5-299.5 |
||
| L13 | 20 | 20-44 | 80|
450
|
| |||
| L14 | 17 | 20-48 | 60|
400
|
T114 200-290 |
T127 210-283.5 | ||
| L15 | 20 | 20-44 | 80|
450
|
|
Gléas Teannas BZJ09
Bileog Paraiméadar Teicniúil
Trastomhas sceal (mm): 0240
Trastomhas rópa (mm): 08
Samhail rialtóir coimhdeach XS3 XS3A XS3B
Trastomhas sceal (mm): 0240
Trastomhas rópa (mm): 08
Samhail rialtóir coimhdeach XS3 XS3A XS3B
Gléas teannais BZJ09
| NÍL. | (KG) Frithmheáchan |
CXDXE | H(m) Taisteal carr(m) |
Cineál le haghaidh iarnróid treorach |
| 1 | 10 | 80x86x205 | H≤60 | T78, T75, T89, T89-1 T90, |
| 2 | 15 | 103x86x231 | 60 | |
| 3 | 20 | 122X86X272 | 80 | |
| 4 | 10 | 80x86x205 | H≤60 | T114 |
| 5 | 15 | 103x86x231 | 60 | |
| 6 | 20 | 122X86X272 | 80 |
Gléas Teannas BZJ02
Gléas Teannas BZJ02
| NÍL. | Cineál le haghaidh iarnróid treorach | TL(mm) An fad idir lárionad rópa agus ionad iarnróid |
HB (mm) |
HD(mm) Trastomhas sheave |
| L01 | T78 | 132-281 | 493.5~642.5 | 0200 |
| L02 | 557~706 | 0250 | ||
| L03 | 608~757 | 0300 | ||
| L04 | T89 | 137-275 | 498.5~636.5 | 0200 |
| L05 | 562~700 | 0250 | ||
| L06 | 613~751 | 0300 | ||
| L07 | T114 | 158~306 | 519.5~667.5 | 0200 |
| L08 | 583~731 | 0250 | ||
| L09 | 634~776 | 0300 | ||
| L10 | T127 | 164~300 | 525.5~331.5 | 0200 |
| L11 | 589~725 | 0250 | ||
| L12 | 640~776 | 0300 | ||
| L13 | T140 | 185~215 | 546.5~576.5 | 0200 |
| L14 | 661~691 | 0300 |
Gléas Teannas BZJ03
Gléas Teannas BZJ03
| NÍL. | Cineál le haghaidh iarnróid treorach | (kg) Frithmheáchan |
HD(mm) Trastomhas sheave |
HA (mm) |
HB (mm) |
| L01 | T75 T89 | 15,20 | 0200 | 140 | 438.5 |
| L02 | 0250 | 165 | 467 | ||
| L03 | 0300 | 190 | 553 | ||
| L04 | T114 | 0200 | 140 | 438.5 | |
| L05 | 0250 | 165 | 467 | ||
| L06 | 0300 | 190 | 553 |
| Cineál | M | N |
| BZJ03 | 230±10 | 13.5 |
| 133.5±10 | 36.5 |
Samhail rialtóir coimhdeach XS200 nó XS300
