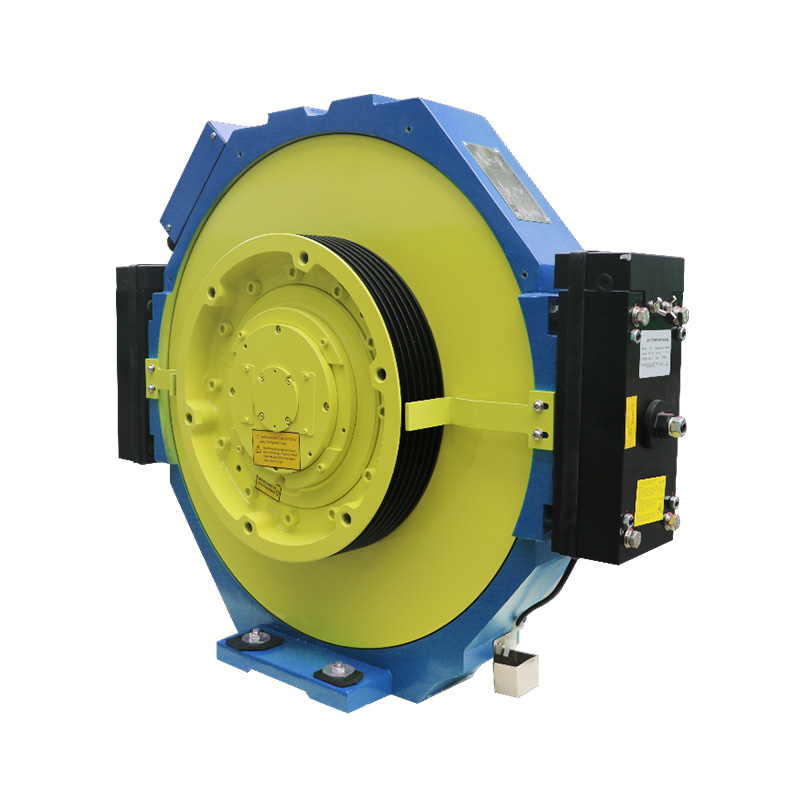

MEAISÍNÍ SRAITH WJC-T (400mm SHEAVE).
| Cumas | 630kg-1050kg |
| Wrap | Timfhilleadh Aonair |
| Rótar | Rotor Seachtrach |
| Fo-ghearradh | U |
| Maoile Pad Crúibe | <0.5mm |
| Rátáil Cosanta | IP41 |
| Rang Inslithe | F |
| Polannaigh | 40 |
| Timthriall Dleachta | S5-40% |
| Voltas Ráta Mótair | AC380V |
| Coscán | Bloc |
| Voltas a Phiocadh/a Choimeád | DC110V |
Foinse cumhachta ceartúcháin lántonn le haghaidh coscánaithe
| Múnla | Cumas kg |
Luas Ardaitheoir m/s |
Aschur Rátáilte KW |
Reatha Rátáilte A |
Luas Rátáil rpm |
Minicíocht Hz |
Trastomhas Sheave mm |
chasmhóiminte Nm |
Rópaí | Ceantar Groove. mm |
Uillinn Gearr | Uillinn Groove | Roping | Luchtaigh Seafta kg |
Láimhseáil Roth | Scaoileadh cianda | Táimhe kg m^2 |
Meáchan kg |
| WJC-630-100-T | 630 | 1.0 | 4.2 | 11.0 | 95 | 31.8 | 400 | 419 | 5-Φ8 | 12 | β=90° | γ=30° | 2:1 | 3000 | N | N | 5.15 | 330 |
| WJC-630-150-T | 1.5 | 6.3 | 18.0 | 143 | 47.7 | |||||||||||||
| WJC-630-160-T | 1.6 | 6.7 | 18.0 | 153 | 50.9 | |||||||||||||
| WJC-630-175-T | 1.75 | 7.3 | 18.0 | 167 | 55.7 | |||||||||||||
| WJC-800-100-T | 800 | 1.0 | 5.3 | 12.5 | 95 | 31.8 | 400 | 532 | 6-Φ8 | 12 | β=90° | γ=30° | 2:1 | 3000 | N | N | 5.15 | 335 |
| WJC-800-150-T | 1.5 | 8.0 | 22.0 | 143 | 47.7 | |||||||||||||
| WJC-800-160-T | 1.6 | 8.5 | 22.0 | 153 | 50.9 | |||||||||||||
| WJC-800-175-T | 1.75 | 9.3 | 22.0 | 167 | 55.7 | |||||||||||||
| WJC-1000-100-T | 1000 | 1.0 | 6.4 | 15.0 | 95 | 31.8 | 400 | 640 | 6-Φ8 | 12 | β=90° | γ=30° | 2:1 | 3000 | N | N | 5.15 | 335 |
| WJC-1000-150-T | 1.5 | 10.0 | 29.0 | 143 | 47.7 | 665 | ||||||||||||
| WJC-1000-160-T | 1.6 | 10.7 | 29.0 | 153 | 50.9 | |||||||||||||
| WJC-1000-175-T | 1.75 | 11.6 | 29.0 | 167 | 55.7 | |||||||||||||
| WJC-1050-100-T | 1050 | 1.0 | 6.4 | 15.0 | 95 | 31.8 | 400 | 640 | 6-Φ8 | 12 | β=90° | γ=30° | 2:1 | 3000 | N | N | 5.15 | 335 |
| WJC-1050-150-T | 1.5 | 10.3 | 30.0 | 143 | 47.7 | 686 | ||||||||||||
| WJC-1050-160-T | 1.6 | 11.0 | 30.0 | 153 | 50.9 | |||||||||||||
| WJC-1050-175-T | 1.75 | 12.0 | 30.0 | 167 | 55.7 |
Nótaí:
1. Is é DC110V an voltas piocadh / coinneála coscáin. Ní gá lasc voltais.
2.Is é an cóimheas comhardaithe ná 0.45~0.5.
Uillinn fillte 3.180° agus feidhmchlár MRL.
Iarratas tiomáint 4.Regen, téigh i gcomhairle linn, ansin ordú le nótaí.
