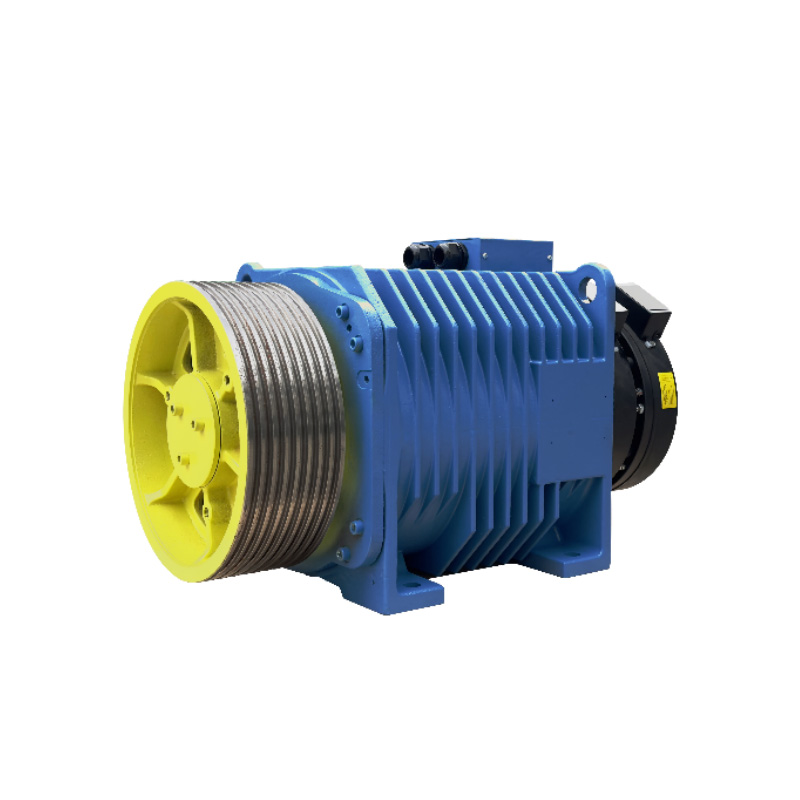

Meaisíní sraith WR
| Cumas | 1600kg-2000kg |
| Wrap | Timfhilleadh Aonair |
| Rótar | Rotar inmheánach |
| Fo-ghearradh | U |
| Maoile Pad Crúibe | < 0.5mm |
| Rátáil Cosanta | IP40 |
| Rang Inslithe | F |
| Poles | 20 |
| Timthriall Dleachta | S5-40％ |
| Voltas Ráta Mótair | AC380V |
| Coscán | Pláta |
| Voltas a Phiocadh/a Choimeád | DC110V |
Foinse cumhachta ceartúcháin lán-tonn le haghaidh coscáin
| Múnla | Cumas kg |
Luas Ardaitheoir m/s |
Aschur Rátáilte KW |
Reatha Rátáilte A |
Luas Rátáil rpm |
Minicíocht Hz |
Trastomhas Sheave mm |
chasmhóiminte Nm |
Rópaí | Ceantar Groove. mm |
Uillinn Gearr | Uillinn Groove | Roping | Luchtaigh Seafta kg |
Láimhseáil Roth | Scaoileadh cianda | Táimhe kg m^2 |
Meáchan kg |
| ★WR-1600-100-D | 1600 | 1.0 | 9.7 | 23.0 | 119 | 19.9 | 320 | 775 | 10-Φ8 | 12 | β=90° | γ=30° | 2:1 | 5000 | N | N | 1.40 | 500 |
| WR-1600-150-D | 1.5 | 16.0 | 42.0 | 179 | 29.8 | 851 | ||||||||||||
| WR-1600-160-D | 1.6 | 17.0 | 191 | 31.8 | ||||||||||||||
| WR-1600-175-D | 1.75 | 18.6 | 209 | 34.8 | ||||||||||||||
| WR-1600-200-D | 2.0 | 20.3 | 45.0 | 239 | 39.8 | 812 | ||||||||||||
| ★WR-2000-100-D | 2000 | 1.0 | 11.5 | 28.0 | 119 | 19.9 | 320 | 922 | 12-Φ8 | 12 | β=90° | γ=30° | 2:1 | 5000 | N | N | 1.50 | 520 |
| WR-2000-150-D | 1.5 | 20.0 | 52.0 | 179 | 29.8 | 1064 | ||||||||||||
| WR-2000-160-D | 1.6 | 21.3 | 191 | 31.8 | ||||||||||||||
| WR-2000-175-D | 1.75 | 23.3 | 209 | 34.8 | ||||||||||||||
| ★WR-2000-200-D | 2.0 | 24.4 | 55.0 | 239 | 39.8 | 976 |
Nótaí: 1. Ní bhaineann dearadh caighdeánach na sraithe seo ach le haghaidh uillinn fillte 180 °.
2. Le★marc, is é an cóimheas comhardaithe 0.45~0.5.
3. Regen drive application, please consult with us, then order with notes.
